Fire
Suppression Systems

Nitrogen package fire extinguisher: YN-100/30 Mpa

Nitrogen package fire extinguisher: YN-100/30 Mpa

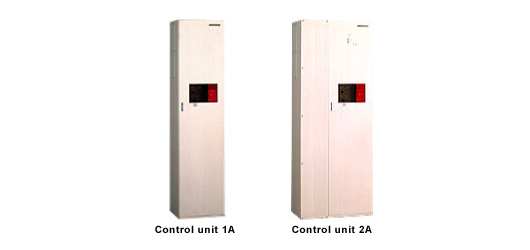

Control unit 1A
A basic package including one extinguishing agent container, hose connection outlet, and control devices (control panel, sound device, storage battery, auto-manual switch).
Control unit 2A
The same basic package as 1A; complete with two extinguishing agent containers.

Features

Un environmentally safe, natural extinguishing agent
Uses a natural extinguishing agent, nitrogen, which makes up 80% of the atmosphere, thus minimizing environmental effects. Pollution and environmental destruction are no longer an issue with this revolutionary fire protection apparatus.
Unimpaired vision during output, with no adverse effects on the human body
Since nitrogen gas is used, the system output is colorless and so the users vision is not impaired, unlike with liquidized storage systems. This means that fire-extinguishing activities do not hinder evacuation. And nitrogen gas is harmless to the human body.
No pollution of the installation environment
Because only clean gas is discharged, there is no pollution due to condensation and frosting, so precision machinery and valuable materials are unaffected. Furthermore, insulation ensures that corrosion is not a concern, thereby helping to keep the installation environment clean.
Long-lasting effects
The weight of discharged nitrogen gas is roughly the same as air, so it remains in the room longer and its extinguishing effect is prolonged.
Easy to acquire extinguishing agent
Nitrogen, a natural substance, is easy to acquire and replace. After using your fire extinguisher, please contact us immediately.
・In general, can be installed in the same places as halon 1301 fire extinguishers.

Installation Locations, areas and volumes

YN-100/30MPa
applicable areas
Halon 1301 and YN-100/30MPa
applicable areas
Floor area Total area
Communication
machinery room, etc.
Communication machinery room, wireless radio room, telephone exchange room, computer room, telex room, magnetic disc room, telephone exchange office, communication machinery control room, data printing room up to 500㎡ up to 1500㎥
Control room, etc. Power control room, operation room, control room, central control room, dynamic measuring instrument room
Electric room, etc. Electric room, transformer room, seitchboard room, storage battery room, substation room, UPS room, CVCF room up to 200㎡ up to 600㎥
Generator room, etc. Generator room(excluding hazardous goods handling premises and areas containing gas turbine generators) up to 200㎡ up to 1200㎥
Cable room, etc. EEPS, electric cable utility tunnels, MDF room, below grade pits
Film vault Film bault, VCR room, tape vault, MT room
Film vault Film vault, VTR room, tape vault, MT room
Engine room, etc.
(Japan)
Engine room, elevator engine room, pump room, air-conditioner room, heat source machinery room, boiler room, water cooling and heating machine room(excluding hazardous goods handling premises and areas containing gas turbine generators) up to 500㎡ up to 1500㎥
Art storage vault
(Japan)
Cultural artifact storage vault, art storage vault(excluding split-level interiors)

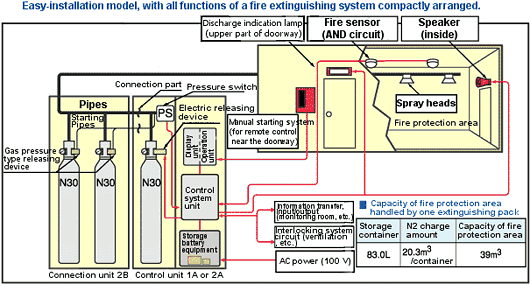

Example of system configuration

Example of system configuration



Specifications

Designed extinguishing capacity 0.52㎥ / ㎥
Designed density 40.3%
Maximum allowable density 52.3%
Discharge time 60 sec.
Discharge type total flooding
Activation type auto-manual convertible
(Auto-activation: AND – activation according to 2 sensors)

The extinguishing agent is nitrogen, which is a natural substance that is harmless to the human body and reduce global warming.
