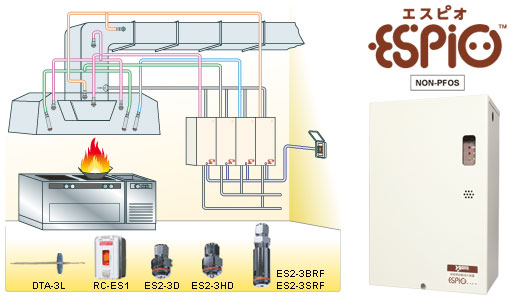

The Espio Series uses its highly sensitive sensors to quickly detect fires in range hoods, ducts, cooking ranges and fryers. Using a safe and environment-friendly loaded stream (neutral) and an automatic spray system, this auto-sprinkler system is designed especially for the kitchen.
Specification
| ES2-3HD | ES2-3BRF | ES2-3SRF | ES2-3D | |
|---|---|---|---|---|
| Usage | For hood and duct | For cooking range | For fryer | For duct |
| Performance rating | 評23-011号 | 評23-022号 | 評23-021号 | 評23-010号 |
| Protection area | Hood 2.8×2.0m Duct3,000c㎡×5m |
Range 1.2×2.5m Fryer 0.7×1.2m |
Range 1.3×1.3m Fryer 0.7×1.2m |
3,000c㎡×5m |
| Weight of chemicals | eutral reinforced liquid 3.5L（Stored Pressure Type） | |||
| Cabinet dimensions | H500×W330×D210mm | |||
| Discharge time | Approx. 20sec | Approx. 21sec | Approx. 24sec | Approx. 27sec |
| Usable temperature range | -10℃ to +40℃ | |||
