Powder based agent that extinguishes by inhibiting the free radicals produced by combustion.ABC extinguishers utilize a dry chemical agent (siliconized monoammonium phosphate) that suppresses Class A, B and C fires. They can be used to extinguish common combustible, flammable liquid and live electrical equipment fires. ABC extinguishers are great for home, office, flammable liquid storage, boiler room, chemical facility and warehouse applications.
Specification

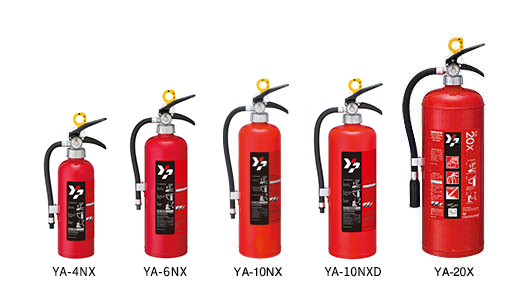

| YA-4NX | YA-6NX | YA-10NX | YA-10NXD | YA-20X | |
|---|---|---|---|---|---|
| Gross weight | Approx. 2.58kg |
Approx. 3.87kg |
Approx. 5.08kg |
Approx. 5.80kg |
Approx. 10.40kg |
| Weight of chemicals | 1.2kg | 2.0kg | 3.0kg | 3.5kg | 6.0kg |
| Total height | Approx. 38cm |
Approx. 45cm |
Approx. 49cm |
Approx. 49cm |
Approx. 55.8cm |
| Total width | Approx. 18cm |
Approx. 18cm |
Approx. 18cm |
Approx. 18cm |
Approx. 20.2cm |
| Discharge time(20℃) | Approx. 12sec |
Approx. 15sec |
Approx. 14sec |
Approx. 17sec |
Approx. 20sec |
| Discharge range(20℃) | 3 – 5m | 4 – 7m | 3 – 7m | ||
| Fire range (Japanese standard) | A-1/B-3/C | A-2/B-3/C | A-3/B-7/C | A-5/B-12/C | |
| Operating temperature range | -30℃ to +40℃ | ||||
| Specification | download | download | download | download | download |
| SDS | download | ||||
