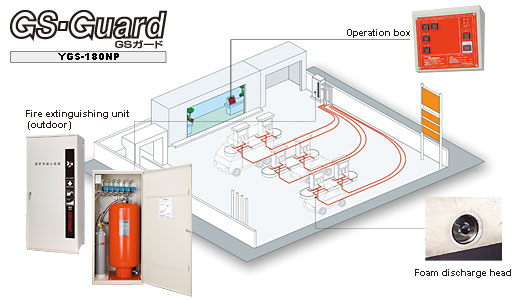

A highly effective, horizontal dischange foam unit for use in self-service petrol stations. Piping can be fed in any direction. When planning your next self-service petrol station, be sure to ask us for advice.
For safety reasons, the term self-service petrol station refers only to those with staff in attendance.
Specification
| Model testing confirmation number | YP-E-02-001 （certified Hazardous Materials Safety Techniques Association） |
|---|---|
| Operation method | Press-down switch(With protection cover) |
| Gross weight | Maximum approx. 350kg (Including 187kg of extinguishing agent) |
| Cabinet dimensions | Outdoor type 1,785×775×615mm |
| Extinguishing agent | alpha form 310R ７Ｌ＋fire antifreeze solution ※alpha form 310R is AFFF（aqueous film-forming foam）3% (for-10℃) note：fire antifreeze solution is used as dilution water |
| Amount of pressurizing nitrogen gas | 13.4L 14.7MPa(3.5℃) |
| Injection hole (foam head) | 2pieces×number of compartments |
| Standard discharge amount | 11.0L/min・piece |
| Control panel | Power source：AC100V ＊Installed inside of the cabinet (operation box is installed in the office.) |
