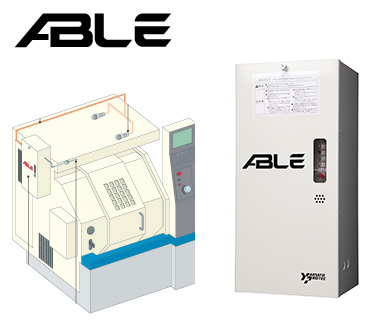

ABLE – The Able Series of fire extinguishing system protects industrial machinery from fire, which is now a greater risk as such machinery is increasingly unmanned. Highly reactive sensors detect and extinguish fires quickly. This series is very compact and easily attached to all kinds of industrial machinery.
Specification
| ACO-4C | ACO-7C | ACO-10C | ACO-15C | |
|---|---|---|---|---|
| Gross Weight | Approx. 16.8kg | Approx. 19.5kg | Approx. 26.0kg | Approx. 32.5kg |
| Extinguishing agent | Carbon dioxide(CO2) | |||
| Extinguishing agent mass(capacity) | 2.0kg | 3.2kg | 4.6kg | 6.8kg |
| usage | Machine tools, general industrial macinery, etc. | |||
| Dimensions (H×W×D) |
580×275×230mm | 800×290×250mm | ||
| Model No. of control panel | GCA-3HG | |||
| ACO-60B | ACO-100B | AVF-6B | ADC-20B | ACO-15CZ | |
|---|---|---|---|---|---|
| Gross Weight | Approx. 175kg | Approx. 215kg | Approx. 24.0kg | Approx. 30.0kg | |
| Extinguishing agent | Carbon dioxide (CO2) |
Foam (mechanical foam) |
Dry Chemical (ABC) |
Carbon dioxide (CO2) |
|
| Extinguishing agent mass(capacity) | 28.0kg | 45.0kg | 6.0L | 6.0kg | 6.8kg |
| usage | Machine tools, general industrial machinery, etc. | Local machine tools, oil tanks, etc. | General industrial macinery, etc. | Machine tools, general industrial macinery, etc. | |
| Dimensions (H×W×D) |
2,100×400×450mm | 800×290×250mm | 800×250 ×250mm |
||
| Model No. of control panel | GCA-3HG | MC-K | |||
